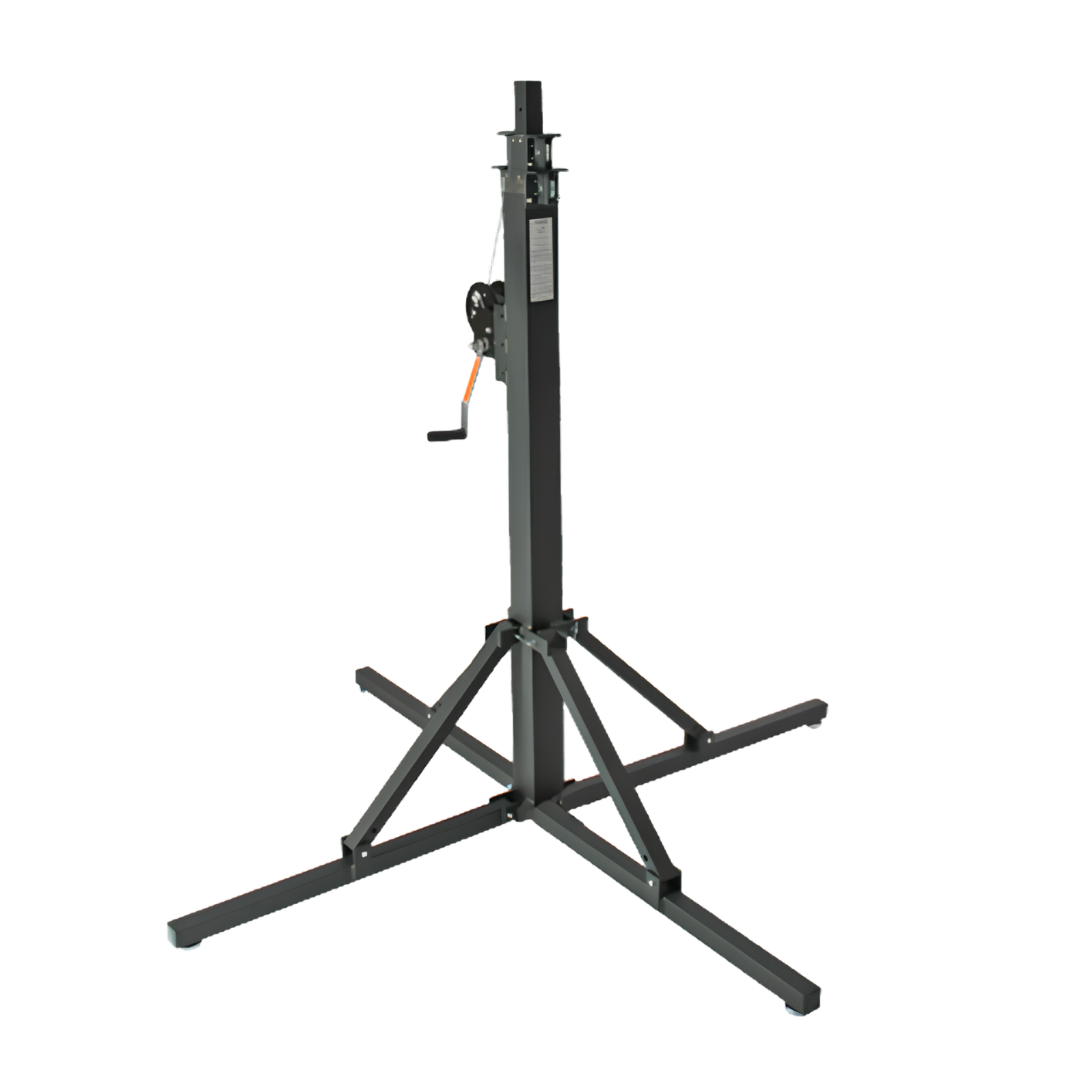

L16 WINCH UP
L16 Winch Up
The L16 Winch Up is a professional heavy-duty crank-up stand designed to make lifting trusses, lighting systems, and production equipment safer, faster, and more efficient. Built for demanding live event environments, it provides a practical alternative to expensive venue rigging while delivering exceptional lifting capacity and stability.
Capable of lifting up to 225kg to a maximum working height of 4.9 metres (16 feet), the L16 Winch Up is ideal for supporting lighting trusses, speakers, LED screens, and other production equipment. Its heavy-duty self-braking winch ensures smooth, controlled lifting and secure positioning, while 18 separate locking positions provide added safety throughout operation.
Constructed from durable aluminium, the stand offers an excellent balance of strength and portability. Designed for one-person, two-minute setup, it helps reduce installation time, making it a valuable addition to touring productions, theatres, corporate events, exhibition centres, and rental companies.
Key Features
- Heavy-duty crank-up truss stand
- Maximum load capacity of 225kg (500 lbs)
- Adjustable height from 2m to 4.9m (16′)
- Heavy-duty self-braking winch for smooth, safe lifting
- 18 separate locking positions for enhanced safety
- One-person, two-minute setup
- Strong yet lightweight aluminium construction

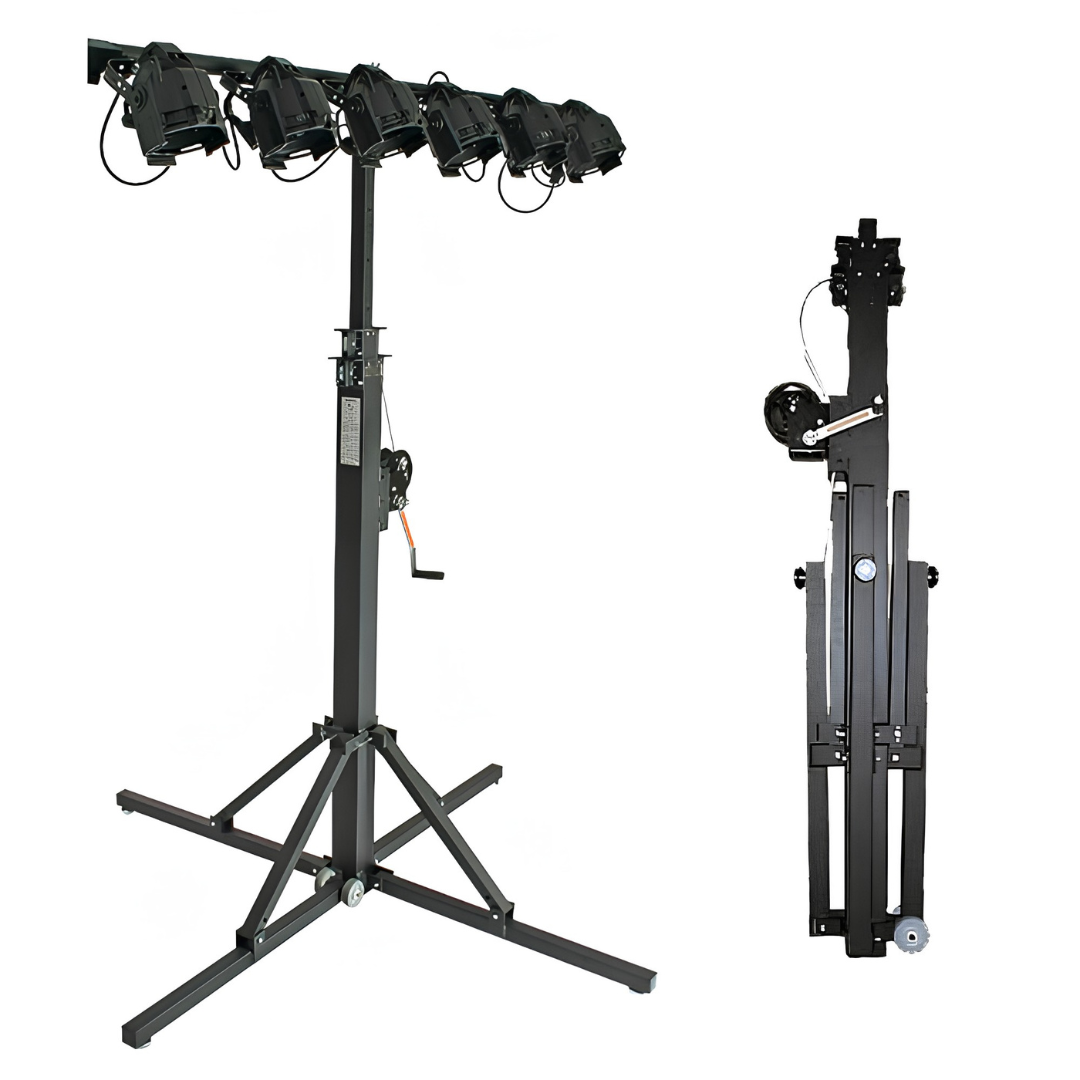

- Ideal for lifting truss systems, lighting fixtures, speakers, and production equipment
- Reduces the need for costly venue rigging
- Designed for professional touring, theatre, and event production applications
Technical Specifications
- Stand Type: Heavy-Duty Crank-Up Stand
- Maximum Height: 4.9m (16′)
- Minimum Height: 2m
- Maximum Load Capacity: 225kg (500 lbs)
- Construction: Aluminium
- Winch: Heavy-duty self-braking
- Locking Positions: 18
- Dimensions: 350 × 400 × 2000mm
- Weight: 40kg
Ideal Applications
- Concert Productions
- Theatre Productions
- Touring Events
- Exhibition & Trade Shows
- Corporate Events
- Houses of Worship
- TV & Film Productions
- Event Hire & Rental Companies
- Lighting Truss Installations
- Professional Audio & Lighting Setups
Why Choose the L16 Winch Up?
The L16 Winch Up is built for professionals who require maximum lifting capacity, dependable safety, and efficient setup. Its robust aluminium construction, 225kg lifting capacity, and self-braking winch make it the ideal solution for safely raising trusses and production equipment while reducing labour and installation time. Whether used for permanent installations or mobile productions, the L16 Winch Up delivers the reliability and performance trusted by the entertainment industry.
