Zero Three Compliant Wheelchair Ramp 200
Zero Three Compliant Wheelchair Ramp 200
Providing safe and practical access is an important part of planning an accessible event, venue or temporary installation.
The Zero Three Compliant Wheelchair Ramp 200 is a purpose-designed access ramp for overcoming height differences of up to 200mm. With a 1:14 gradient, 1.2m ramp width, 2.8m ramp length and included handrails, it provides a practical temporary access solution for wheelchair users and people with mobility requirements.
The ramp is carpeted in low-pile black carpet, while the handrails are finished in matt black powder coating, creating a clean appearance that integrates well into professional event environments.
The product is designed to comply with Australian accessibility requirements. AS 1428.1:2021 covers technical requirements for accessible paths of travel, including ramps, landings, handrails, surfaces and related access features (Zero Three Compliant Wheelchair Ramp 200).
200mm Wheelchair Ramp with Handrails
The Zero Three Wheelchair Ramp 200 is specifically configured for access points with a height of up to 200mm.
At this height, the ramp provides:
- 2.8m ramp length
- 1.2m ramp width
- 1:14 gradient
- Integrated handrails
- Low-pile black carpet surface
- Matt black powder-coated handrails
- Portable temporary access solution
- Approx. 90kg weight
The combination of ramp length and rise provides a gradual access route rather than requiring a steep temporary ramp (Zero Three Compliant Wheelchair Ramp 200).
Ramp dimensions at a glance
Height: 0–200mm
Length: 2.8m
Width: 1.2m
Gradient: 1:14
This makes the ramp particularly useful for temporary access requirements where a small step, platform or raised threshold needs to be made accessible.
Wheelchair Ramp Hire for Events
Temporary events often involve stages, marquees, platforms, flooring systems and raised structures that can create changes in level.
Providing an appropriate access ramp can help create a more inclusive event environment.
The Zero Three Compliant Wheelchair Ramp 200 can be used for suitable applications including:
- Outdoor events
- Festivals
- Corporate events
- Community events
- Council events
- Weddings
- Markets
- Temporary venues
- Event stages
- Raised platforms
- Temporary buildings
- Portable facilities
- Exhibition areas
- Hospitality areas
- Accessible entrances
Where a temporary structure creates a 200mm access height, this ramp provides a practical way to bridge that level difference.
Wheelchair Ramp Hire for Stages & Platforms
One of the most useful applications is providing wheelchair access to suitable temporary stages and platforms.
If a stage has a 200mm access height, the ramp can provide an alternative to stairs for people using wheelchairs or other mobility aids.
For larger stage systems with greater platform heights, a different ramp configuration will generally be required.
Zero Three Event Hire can help determine whether the Wheelchair Ramp 200 is appropriate for your specific stage, platform or event infrastructure.

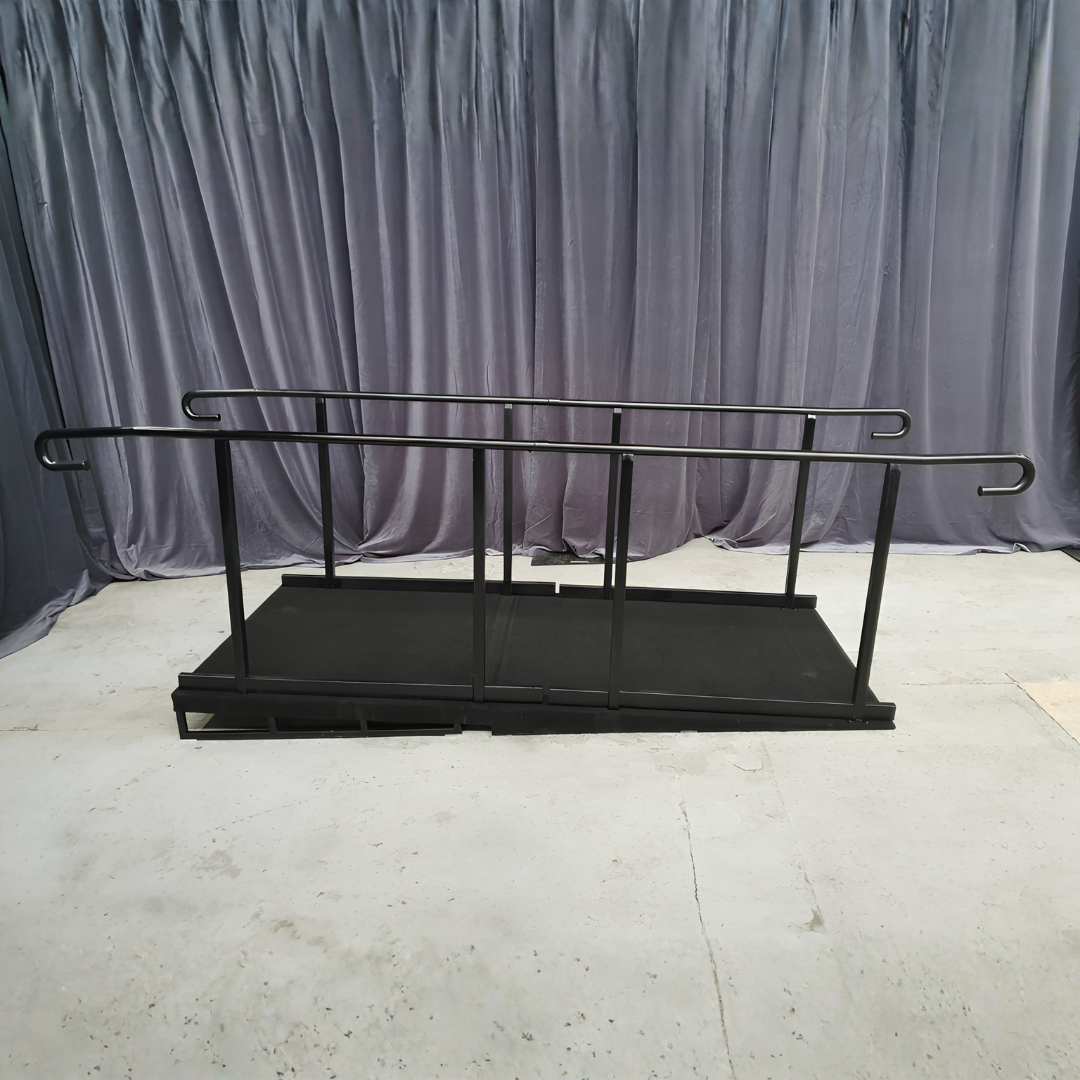

Wheelchair Ramp with Handrails
Handrails are included with the Zero Three Compliant Wheelchair Ramp 200.
The handrails are:
- Included with the ramp
- Powder coated
- Matt black
- Designed as part of the access system
The inclusion of handrails provides additional support along the ramp and contributes to a more complete temporary access installation.
AS 1428.1 Compliant Wheelchair Ramp
AS 1428.1 is Australia’s key standard covering design for access and mobility. The current AS 1428.1:2021 addresses general requirements for access in new building work and includes technical considerations for accessible paths of travel, ramps, landings, handrails and surfaces.
Standards Australia notes that AS 1428.1 becomes mandatory where it is referenced by legislation such as the National Construction Code or the Disability (Access to Premises—Buildings) Standards. Standards Australia also makes clear that it does not itself certify individual products for compliance.
For this reason, the product should be described as designed/built to comply with AS 1428.1 requirements based on the supplied product documentation, while the suitability of the complete ramp installation should be confirmed for the particular site and application.
Provide the access height, location, hire dates and intended application so the appropriate ramp configuration can be confirmed.
